How to Program the QS1431-840 to Your Panel

To connect the Qolsys QS1431-840 Glassbreak Detector to your panel, find your panel below for step-by-step instructions.

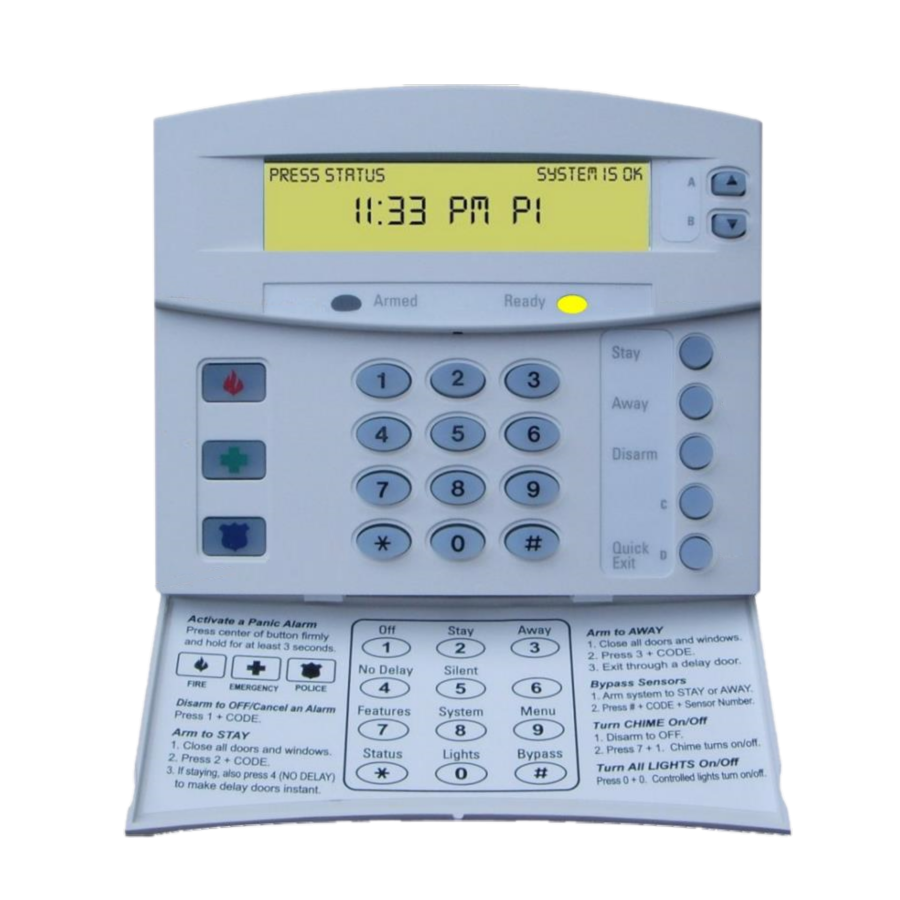

Interlogix Concord

1. While the panel is in a disarmed state, enter 080, then press # for the system to prompt learn sensors.

001a_Learn_Sensor_01_Shortcut_080_166x40.png 001b_Learn_Sensor_02_Learn_Sensors_166x40.png


2. Enter a partition (PTN) number between 1 and 6, then press # to proceed to the next step.

002a_Edit_Sensors_04_Partition_1_166x40.png 002b_Edit_Sensors_04_Partition_2_166x40.png


3. Enter the sensor group number. Enter 10 by default, then press #.

003a_Learn_Sensor_04_Group_0_166x40.png 003b_Learn_Sensor_04_Group_10_166x40.png


4. Open the glassbreak sensor to tamper the cover (steps shown here); the display prompt for any additional sensors.

004a_Learn_Sensor_05_Trip_Sensor_1_166x40.png 004b_Learn_Sensor_06_Trip_Sensor_2_166x40.png


5. Press * to exit back to sensor group, then press # to exit sensor programming back to the learn sensors prompt.

005a_Learn_Sensor_04_Group_10_166x40.png 005b_Learn_Sensor_02_Learn_Sensors_166x40.png


Interlogix Simon XT / XTi / XTi-5

1. Enter programming by selecting the gear icon at the bottom right of the panel, press the down arrow, then press Enter next to programming.

001a_Status_01_278x208.jpg 001b_Volume_01_278x208.jpg 001c_User_Code_01_278x208.jpg


2. Enter the default installer code 4321, then press Ok. Select Sensors under the system programming options.

002a_Programming_04_278x208.jpg 002b_Programming_Main_01_278x208.jpg


3. Press Learn Sensor then open the glassbreak sensor to tamper the cover (steps shown here). The panel will beep when it detects the new glassbreak sensor.

003a_Programming_-_Learn_Sensor_02_278x208.png 003b_Programming_-_Learn_Sensor_03_278x208.png


4. Press Edit by sensor group, and enter 10 by default. Then press Save to exit.

004a_Programming_-_Learn_Sensor_04b_278x208.png 004b_Programming_-_Learn_Sensor_06_278x208.png


5. Press Edit by sensor name, then press Edit to name the sensor. Use up and down arrows to select, then press Save.

005a_Programming_-_Learn_Sensor_04c_278x208.png 005b_Programming_-_Learn_Sensor_07_278x208.png 005c_Programming_-_Learn_Sensor_08_278x208.png


6. Press Close to exit.

006a_Programming_-_Learn_Sensor_09_278x208.png 006b_Programming_-_Edit_Sensors_05_278x208.png


Qolsys IQ Panel 2

1. Press the clock display at the top for the settings tray, select Settings, then Advanced Settings.

001a_Enter_Program_01_275x155.jpg 001b_Enter_Program_02_275x155.jpg 001c_Enter_Program_03_275x155.jpg


2. Enter the default installer code 1111 or the dealer code 2222.

002a_Enter_Program_04_275x155.jpg 002b_Enter_Program_05_275x155.jpg


3. Press Security Sensors, then Auto Learn Sensors.

005a_Security_Sensors_01_275x155.jpg 005b_Auto_Learn_Sensors_01_275x155.jpg 005c_Auto_Learn_Sensor_01_Learning_275x155.jpg


4. Open the glassbreak sensor cover to tamper the sensor cover (steps shown here). The panel will beep and display the sensor settings.

006a_Auto_Learn_Sensor_02_Accept_275x155.jpg 006c_Add_Sensor_52_DL_ID_Entered_2.3.0_433_275x155.png


5. If partitioning is enabled press Partition Name, then select the partition from the list.

007a_Add_Sensor_90_Partition_1_275x155.png 007b_Add_Sensor_91_Partition_2_275x155.png


6. Press Sensor Type, then select the sensor type from the list.

008a_Add_Sensor_53_Sensor_Type_2.3.0_433_1_275x155.png 008b_Add_Sensor_53_Sensor_Type_2.3.0_433_275x155.png

7. Press Sensor Group, then select the sensor from the list.

009a_Add_Sensor_54_Sensor_Group_2.3.0_433_1_275x155.png 009b_Add_Sensor_54_Sensor_Group_2.3.0_433_275x155.png


8. Press Sensor Name, then select the name from the list.

010a_Add_Sensor_55_Sensor_Name_2.3.0_433_1_275x155.png 010b_Add_Sensor_55_Sensor_Name_2.3.0_433_275x155.png 010c_Add_Sensor_55_Sensor_Name_2.3.0_433_2_275x155.png


9. Press Chime Type, then select the chime from the list.

011a_Add_Sensor_56_Chime_Type_2.3.0_433_1_275x155.png 011b_Add_Sensor_56_Chime_Type_2.3.0_433_275x155.png


10. Press Voice Prompts, select On or Off, then press Add New. This will save your sensor & exit the menu.

012a_Add_Sensor_57_Voice_Prompt_2.3.0_433_1_275x155.png 012b_Add_Sensor_57_Voice_Prompt_2.3.0_433_275x155.png 012c_Add_Sensor_58_Finished_275x155.png


How to Tamper the Glassbreak Sensor Cover

Press the latch on the bottom of the glassbreak sensor to remove the front cover. This will tamper the sensor, which sends a tamper signal to your panel and causes the panel to learn the glassbreak detector.
